We have extended our range of machines with specially designed electric Pick & Carry mobile cranes for specialist lifting applications. They are compact and ideal for lifting, moving and machine installation in confined spaces and indoors.

What does Pick & Carry mean?

Pick & Carry = grab and move

Pick & Carry machines are hall or mobile cranes that can move around carrying the load they have lifted without being jacked. Their compact size makes them ideal for special lifting and moving applications indoors, allowing machines to be lifted from the transport vehicle and moved into position indoors in a single operation.


Electric Pick & Carry mobile cranes

Electric hall crane

It is a precision, all-electric, zero-emission machine that combines the benefits of a forklift truck, a loader and a truck crane. Depending on the task, it can lift loads with a winch, fixed hook, hall top, or forklift adapter (to act as a forklift and a loader). Its main advantage is that it has rear-wheel steering, meaning it can turn on a dime and get into every nook and cranny.

If the quality of the ground is poor, we build a suitable route with our large steel plates. Using this quick fix we can also bridge over open or low load-bearing covered process tunnels. With our Pick & Carry machines we can work much quicker than with forklifts and heavy-duty roller skids.


Megakrán

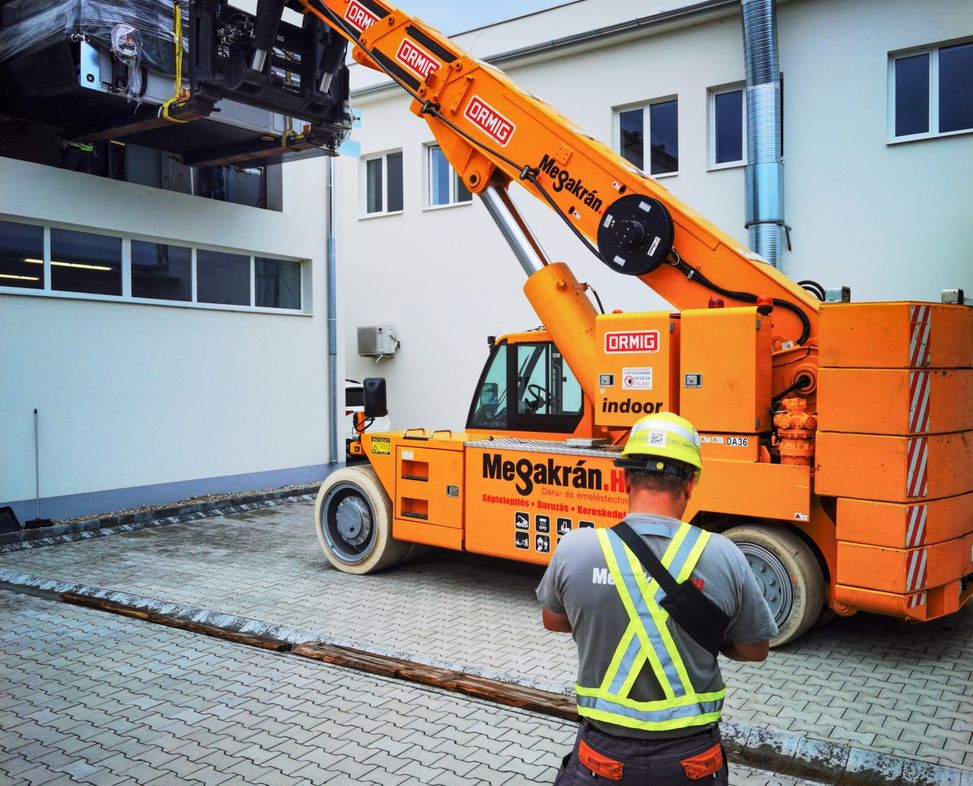

ORMIG pick&carry electric mobile cranes

  •  These cranes can lift, move and transport loads of up to 60 tonnes gross
  • With their compact size, they can access tight work areas without the need to knock down walls, even through narrow and/or low industrial doors
  •  Their manoeuvrability beats that of conventional truck cranes, allowing easy access to the work area between production lines
  •  They accelerate implementation, reduce timelines and provide a more cost-effective solution for our customers
  • They are suitable for indoor, clean room and outdoor use. They can move and carry objects without any problems, even on uneven surfaces.
  •  With their hall tops, they can easily lift and move loads in low-ceilinged spaces.
  •  All of their functions can be controlled from outside the cab by radio remote control.
  •  With their forklift accessory, they can be used as 22-tonne rated forklifts or as loaders, something that other companies in Hungary can’t offer with ease
  •  Their turning radius is almost the same as that of a similarly-sized forklift


ORMIG pick&carry electric mobile cranes
Megakrán

Request our offer for specialized machine moving

Megakrán

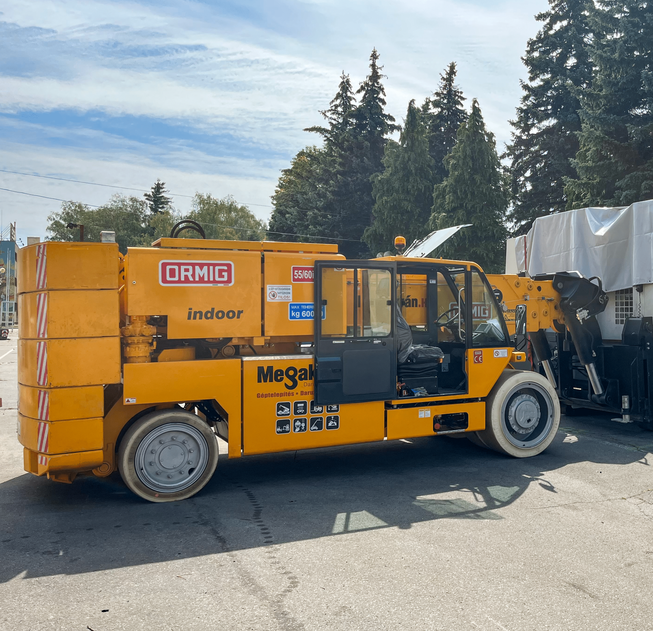

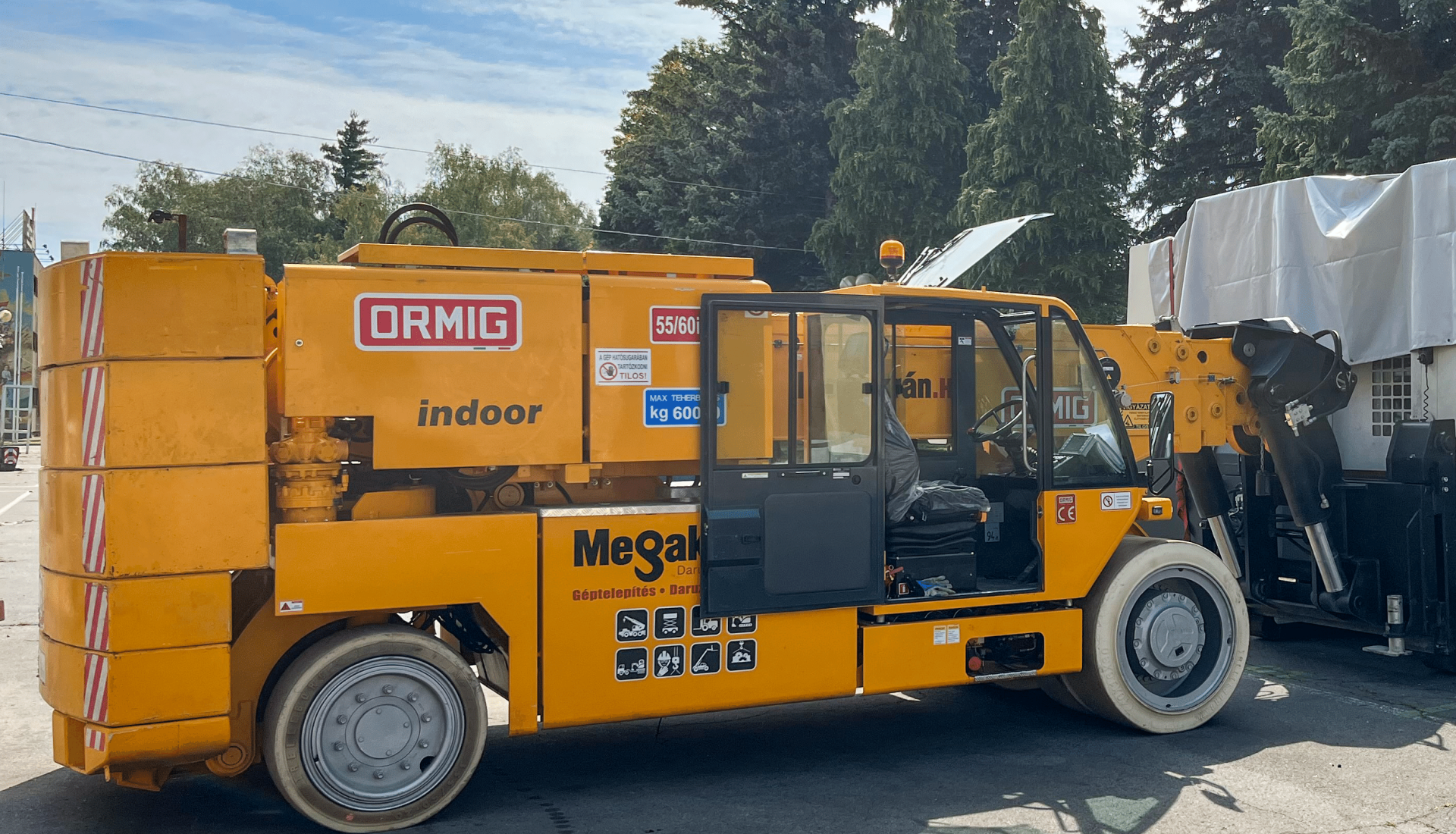

Ormig 55/60 iE
Maximum capacity
60 t
Maximum lifting height
14,5 m
Maximum lifting distance
11 m

Ormig 55/60 iE

It is a precision, all-electric, zero-emission machine that combines the benefits of a forklift truck, a loader and a truck crane. Depending on the task, it can lift loads with a winch, fixed hook, hall top, or forklift adapter (to act as a forklift and a loader). Its main advantage is that it has rear-wheel steering, meaning it can turn on a dime and get into every nook and cranny.

If the quality of the ground is poor, we build a suitable route with our large steel plates. Using this quick fix we can also bridge over open or low load-bearing covered process tunnels. With our Pick & Carry machines we can work much quicker than with forklifts and heavy-duty roller skids.


Show the parameters

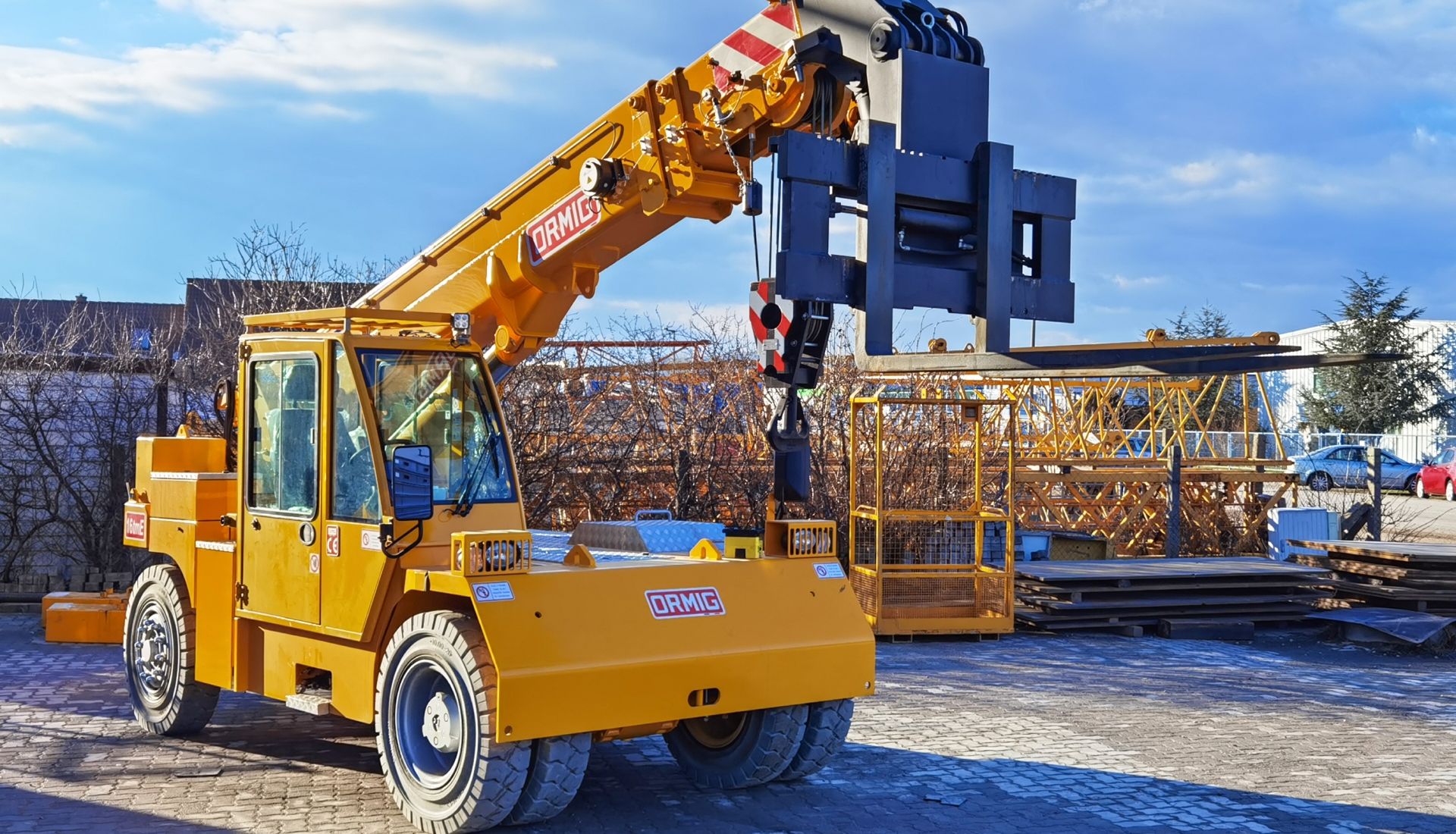

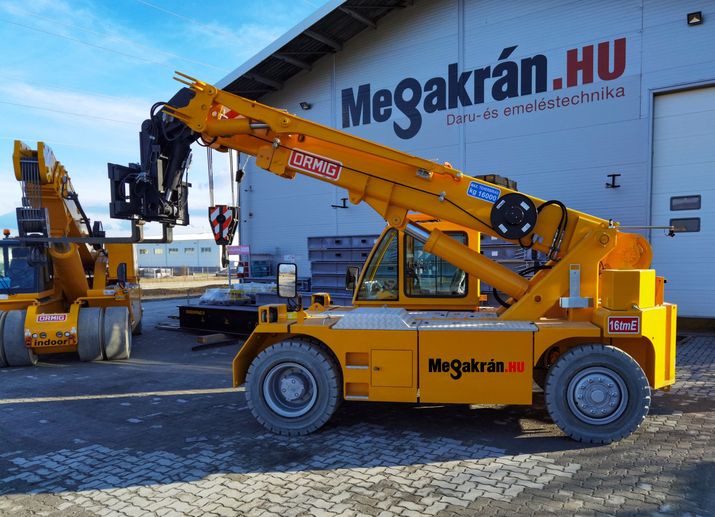

Ormig 16tmE
Maximum capacity
16 t
Maximum lifting height
12 m
Maximum lifting distance
10,45 m

Ormig 16tmE

Our hall cranes are equipped with non-marking white wheels, and being electric powered, they operate without harmful emissions, allowing them to be used without any problem in clean rooms, and chemical and food environments. These cranes can lift, move and transport loads of up to 16 tonnes gross. With their forklift accessory, they can be used as forklifts of 6 tonnes rated capacity,

Your safety is important to us. Our machines can be operated by radio remote control, allowing the operator to move around freely. This feature reduces the risk of dangerous situations arising in the work area, thus promoting safe working conditions. As a consequence of the radio remote control, the headcount of the banksmen can be reduced by 50%, resulting in a cost efficient solution for our clients. We carry out lifting technology and machine installation services in confined or clean spaces.


Show the parameters
Megakrán

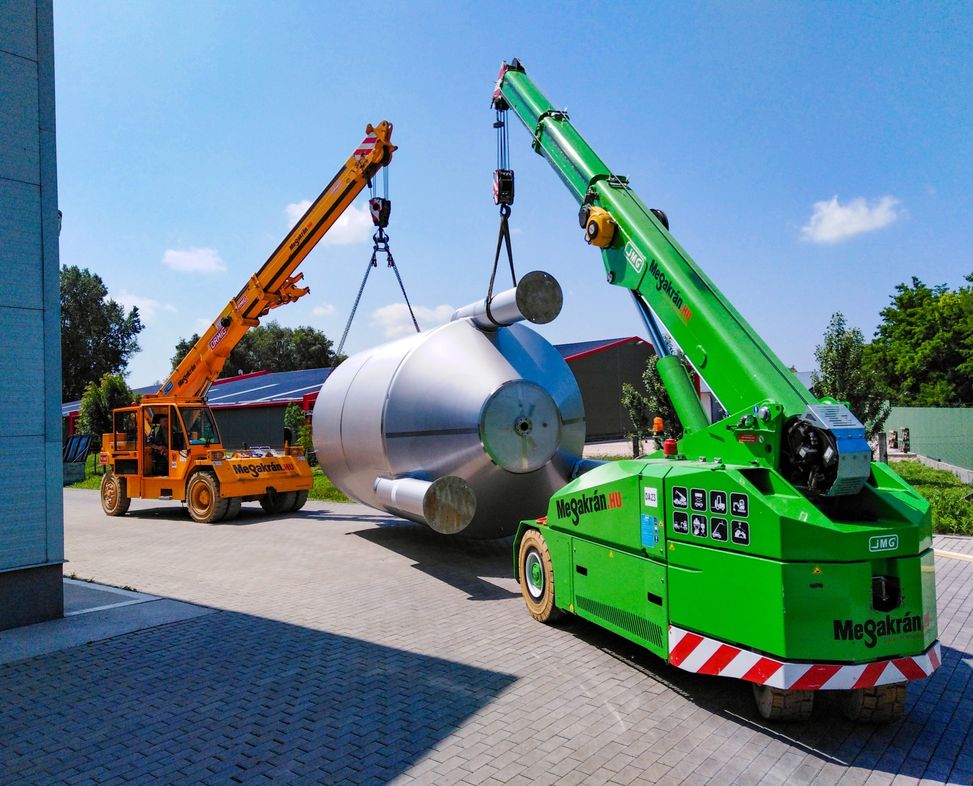

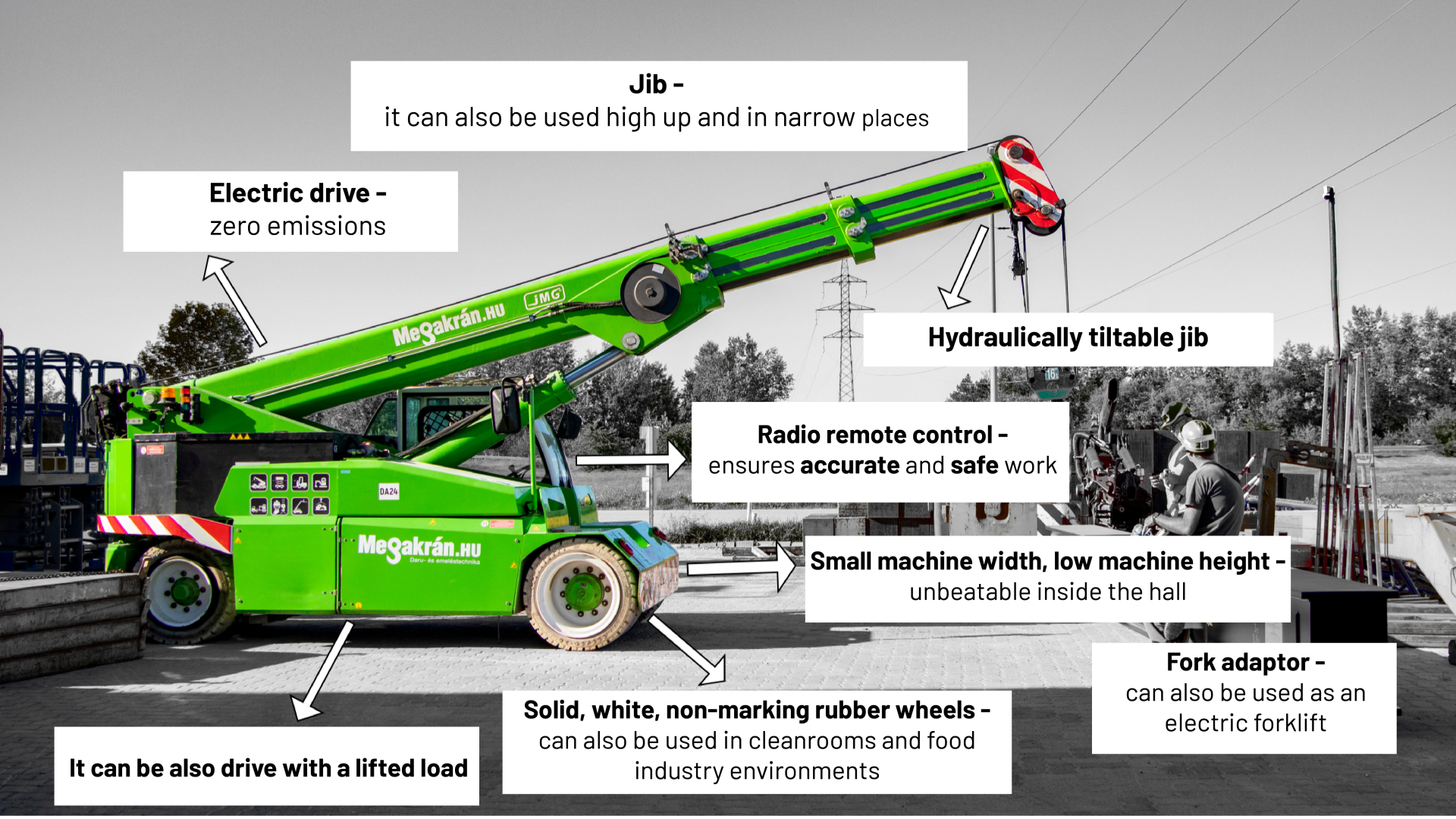

JMG pick&carry electric mobile cranes

  •  Combine the benefits of forklifts, stackers and truck-mounted cranes
  •  They can turn 360 degrees around the front axle and 180 degrees around the rear axle, making it easy to negotiate sharp bends between production lines without disrupting production
  •  Dead space in the cab can be a problem when lifting and moving in confined spaces, but the radio remote control allows safer and more accurate work
  •  They have a hall top adapter, making them ideal for working at height and in confined spaces
  •  Their white, non-marking wheels are perfect for any floor
  •  With their forklift accessory, they can be used as forklifts
  •  They are also an excellent solution for changing tools on machine tools


JMG pick&carry electric mobile cranes
Megakrán

Request our offer for specialized machine moving

Megakrán

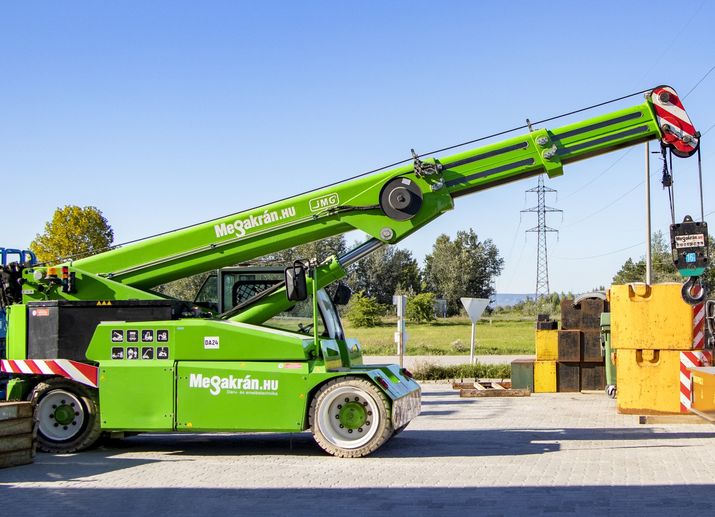

JMG MC160
Maximum capacity
16 t
Maximum lifting height
12 m
Maximum lifting distance
10,7 m

JMG MC160

JMG electric cranes with their compact size, they can access tight work areas without the need to knock down walls, even through narrow and/or low industrial doors. Their manoeuvrability beats that of conventional truck cranes, allowing easy access to the work area between production lines. Dead space in the cab can be a problem when lifting and moving in confined spaces, but the radio remote control allows safer and more accurate work.The maximum lifting capacity of our JMG MC160 hall crane is 16 tons, while assembled with fork has maximum capacity is 8 tones

Show the parameters

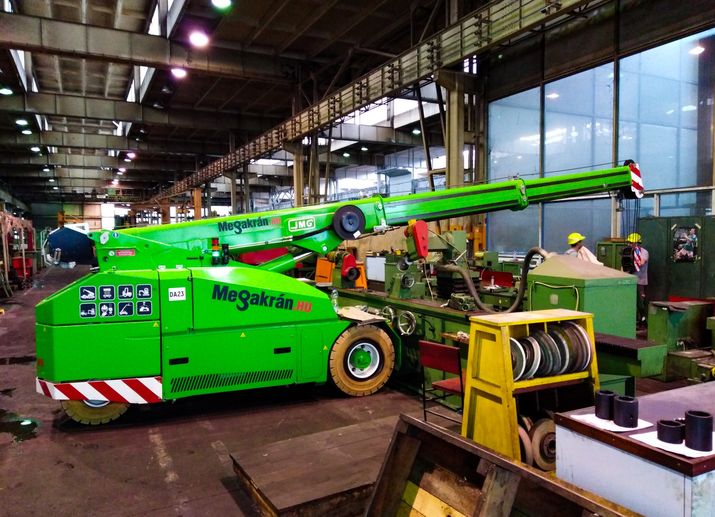

JMG MC90
Maximum capacity
9 t
Maximum lifting height
8 m
Maximum lifting distance
5,5 m

JMG MC90

JMG electric cranes with their compact size, they can access tight work areas without the need to knock down walls, even through narrow and/or low industrial doors. Their manoeuvrability beats that of conventional truck cranes, allowing easy access to the work area between production lines. Dead space in the cab can be a problem when lifting and moving in confined spaces, but the radio remote control allows safer and more accurate work. Our JMG MC90 type of hall crane has a maximum lifting capacity of 9 tons while assembled with fork has 4 tons lifting capacity.The width of the machine is only 1.5 meters, making it perfectly suitable for moving and installing machines in extremely narrow spaces.


Show the parameters
Megakrán
Replacement of press units

Our solutions

Replacement of press units
Replacement of press units

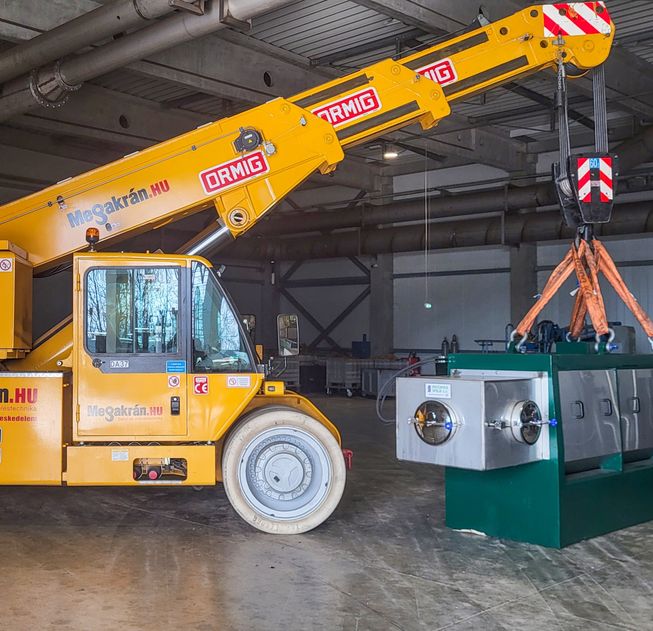

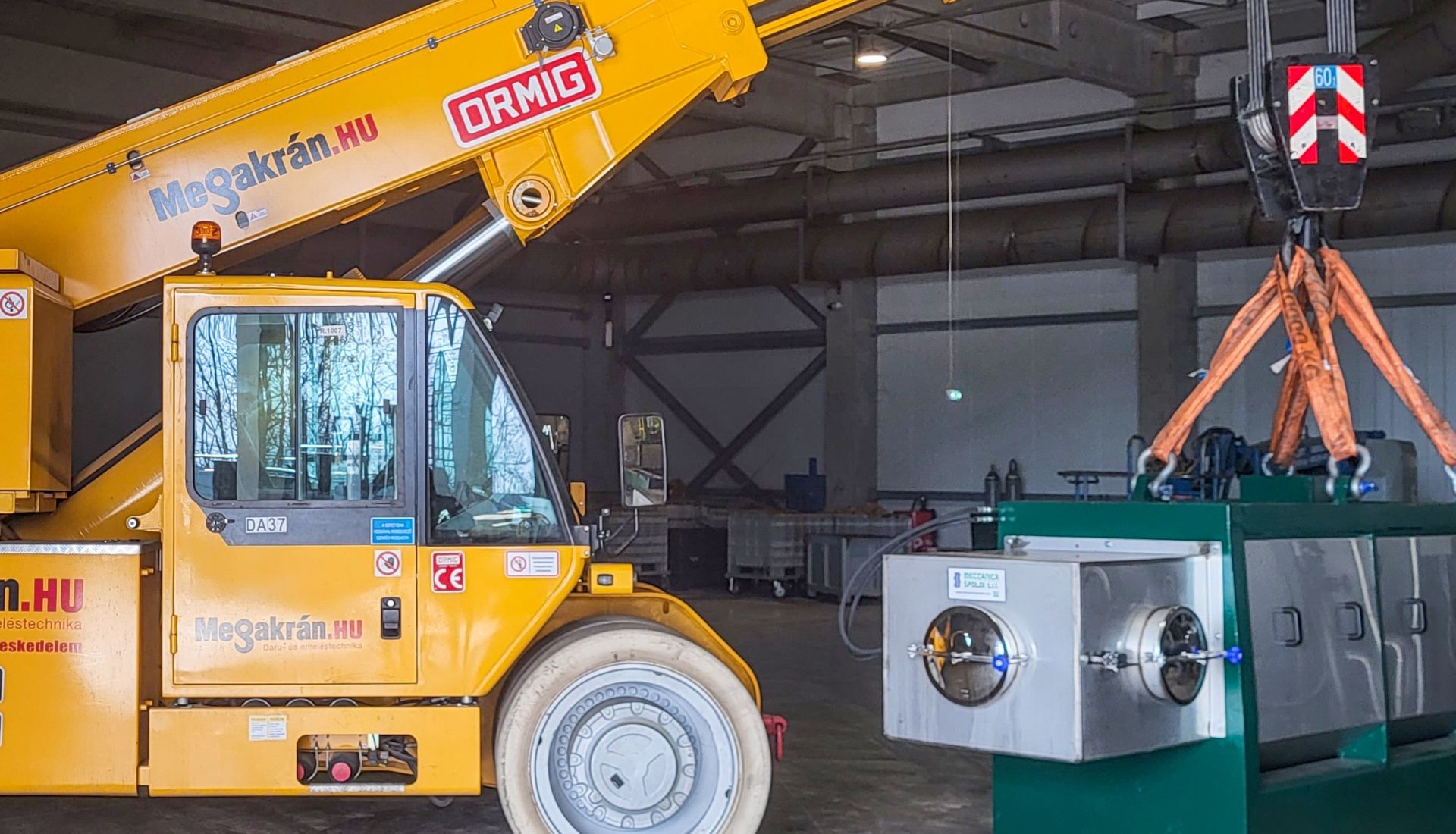

We replaced a 10 tonne press unit from the production process area in a specialised food-industry environment using our Ormig 55/60 iE electric pick & carry crane with non-marking wheels. The old press unit was dismantled, removed from the process area, moved out of the hall using our pick & carry crane machine, and deposited in the factory yard.
We replaced a 10 tonne press unit from the production process area in a specialised food-industry environment using our Ormig 55/60 iE electric pick & carry crane with non-marking wheels. The old pres...

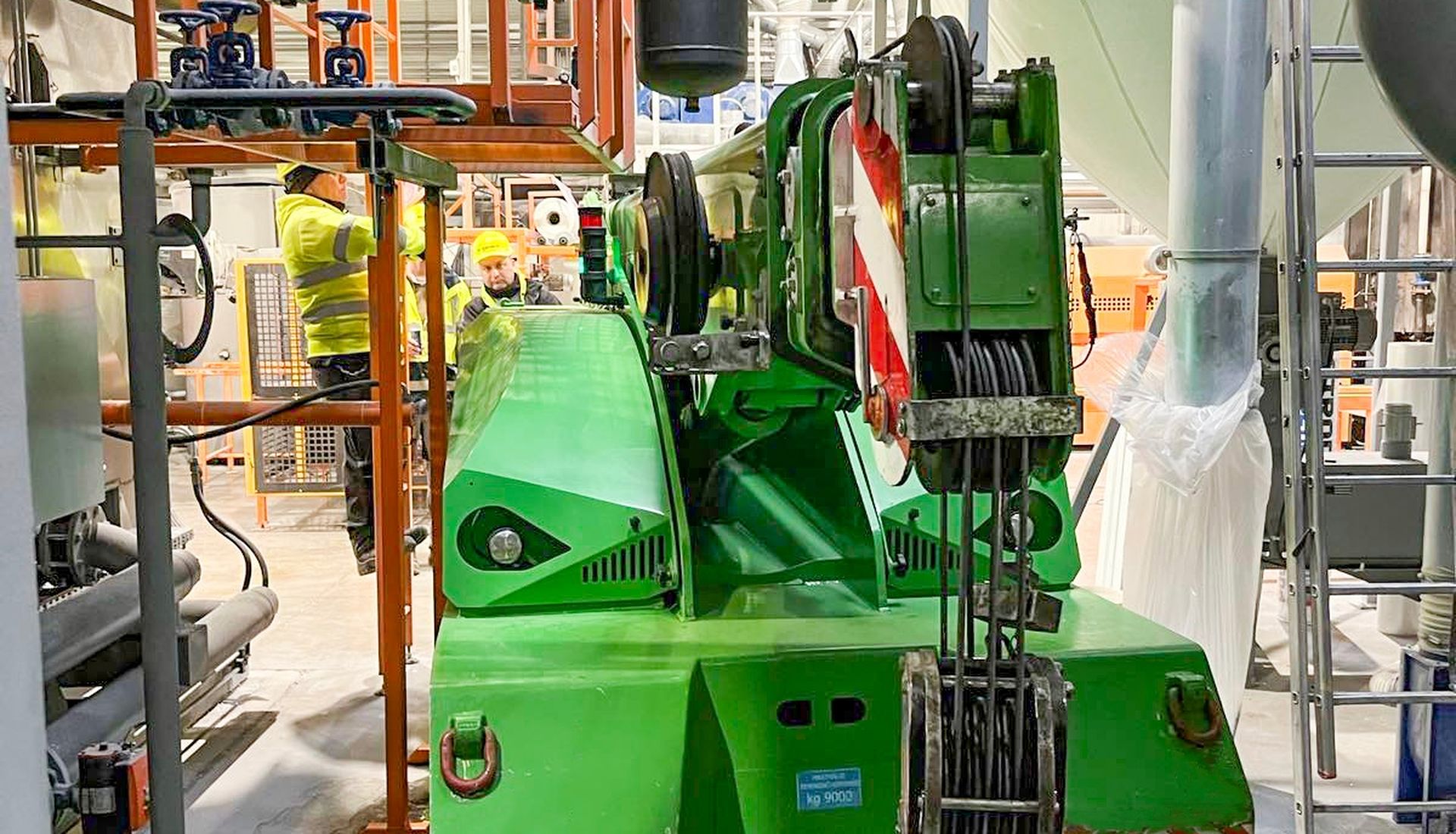

Steam tank lifted in a polystyrene plant using our 9 tonne JMG pick & carry crane

Our solutions

Steam tank lifted in a polystyrene plant using our 9 tonne JMG pick & carry crane
Steam tank lifted in a polystyrene plant using our 9 tonne JMG pick & carry crane

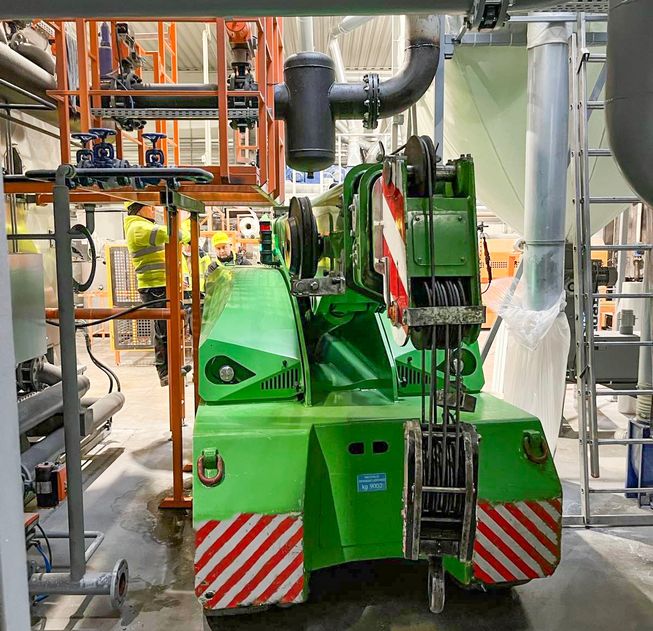

Hoisting was performed for steam tank maintenance in an extremely narrow working area, using our 9 tonne JMG pick & carry crane. The fact that process pipelines significantly restricted the machine’s travel route made completing the hoisting task difficult (the height of the passage was hardly 2 metres). A special compact electric-powered pick & carry crane, only 1.5 metres wide and 1.9 metres high when lowered, was needed to complete this task.
Hoisting was performed for steam tank maintenance in an extremely narrow working area, using our 9 tonne JMG pick & carry crane. The fact that process pipelines significantly restricted the machine’s...
Installing an injection moulding machine

Our solutions

Installing an injection moulding machine
Installing an injection moulding machine
Our first task was to unload the injection moulding machine, which had arrived from China in a container, from the transport vehicle, using our 60-tonne Ormig 55/60 iE electric mobile crane. Due to the lack of space and the fragility of the objects located in the area of passage, it was not possible to lift and handle the container in the customer’s yard using a conventional truck crane.
Our first task was to unload the injection moulding machine, which had arrived from China in a container, from the transport vehicle, using our 60-tonne Ormig 55/60 iE electric mobile crane. Due to th...
Moving a dental milling machnine

Our solutions

Moving a dental milling machnine
Moving a dental milling machnine

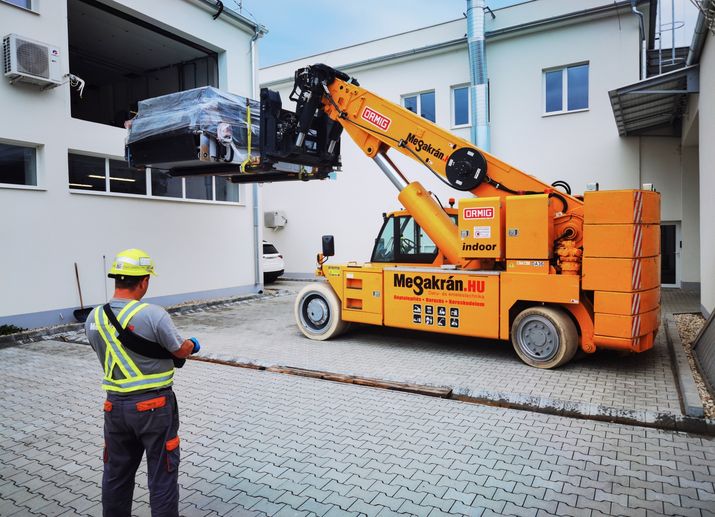

We were hired to remove a dental milling machine from the second floor of a building. To complete the task, a wall had to be knocked down to provide access. This time we used our 16-tonne rated Ormig Pick & Carry with a lifting fork attachment to lift and handle the dental milling machine, which weighed 4 tonnes. Our staff placed the dental milling machine on a transport vehicle and hauled it to its storage location.
We were hired to remove a dental milling machine from the second floor of a building. To complete the task, a wall had to be knocked down to provide access. This time we used our 16-tonne rated Ormig...
We helped our customer install an extruder line

Our solutions

We helped our customer install an extruder line
We helped our customer install an extruder line
We lifted the extruder line elements from the transport vehicle, and using our roller skids, forklift truck and 60-tonne Ormig 55/60iE electric hall crane we moved the line elements into our customer’s production hall. As part of the contract, we positioned and assembled the machine base, then placed the drive unit and cylinder, which weighed 24 tonnes, onto the base, using our Ormig Pick & Carry crane, which has a nominal capacity of 60 tonnes.
We lifted the extruder line elements from the transport vehicle, and using our roller skids, forklift truck and 60-tonne Ormig 55/60iE electric hall crane we moved the line elements into our customer’...
